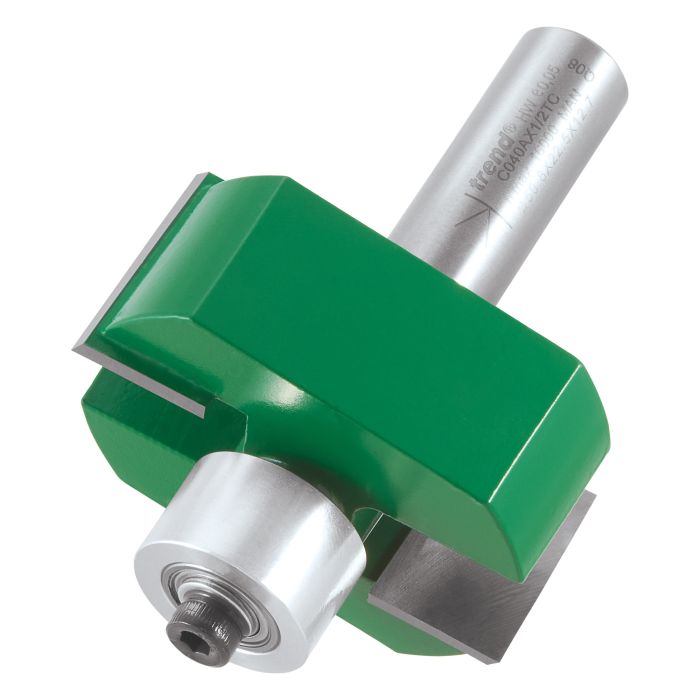

C040AX1/2TC - Trend CraftPro 1/2in Bearing Guide Large Rebater Bit 50.8mm dia x 22.5mm cut depth
C040AX1/2TC
Bearing guided for straight or curved work.
- For portable and stationary routers.
- Supplied as standard with Ref. BR/191 fitted and internal bearing of B127.
- A variety of alloy bearing rings are available to give various rebate sizes.
- Rings are secured between the two bearings.
- 1/2" shank 50.8mm diameter 22.5mm cut depth twin flute TCT bearing guided rebating cutter.
- Makes fast repeatable rebates on straight and curved edges.
- Heavy duty rebating cutter for deeper rebates in joinery type applications.
- Supplied with bearing for 19.1mm rebate backset and slide on collar for 15.9mm rebate backset.
- 22.5mm cut depth suitable for rebated meeting stiles in door construction.
- 1/2" shank for heavy duty applications and fast stock removal.
- PTFE coated bodies reduces friction and heat build-up for longer lifespan.
- 2mm thick Premium Micro-granular Tungsten Carbide Tips for an excellent finish in all materials.
- ‘K’ marked shank ensures correct insertion depth for safe routing.
- Additional shank markings to indicate maximum safe speed and cutter reference.
- D
- 50.8 mm
- C
- 22.5 mm
- B
- 12.7 mm
- E
- 19.1 mm
- E
- 15.9 mm
- OL
- 78 mm
- Shank Diameter
- 1/2 inch
- Shank length
- 35 mm
For stationary machines at max. recommended speed 18,000 RPM
