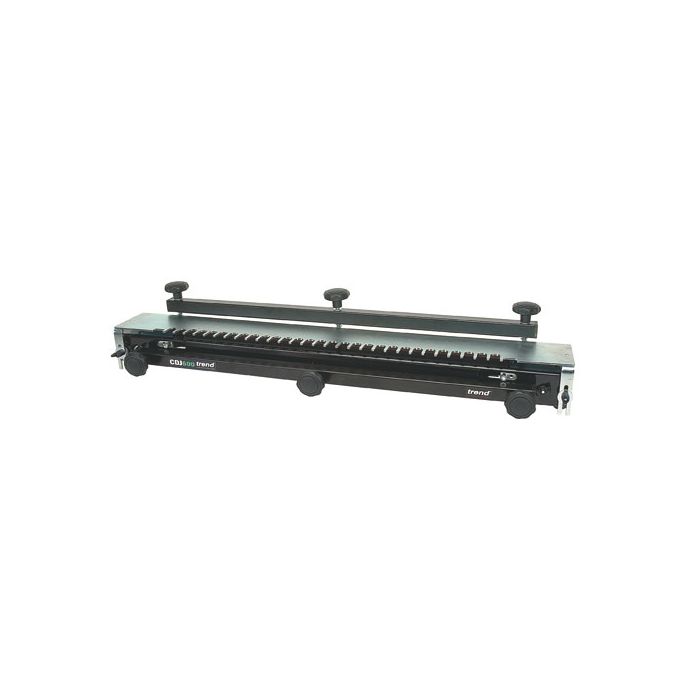

CDJ600 - Craft Dovetail Jig 600mm 1/4-inch shank
CDJ600
An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints.
- Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
- Precision made laser cut zinc plated steel template with packing piece.
- Adjustable offset stops.
- A Unibase and fine height adjuster may be required for certain makes of router.
- A range of accessory templates are available for box joint, dowel and through dovetails.
- Rating
- Craftsman
- Dovetail size
- 12.7 mm
- Cutter shank
- 1/4"
- Workpiece width max.
- 600 mm
- Workpiece thickness min.
- 12 mm
- Workpiece thickness max.
- 25 mm
- Guide bush size
- 15.8 mm
- Router base dia. max
- 180 mm
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
C041AX1/4TC | 023 | These dovetail cutters produce a tight reliable joint for drawers, boxes etc.
|
1 | £24.28 |
|
GB158 | 020 | Guide bush guides the router when using a template.
|
1 | £13.12 |
|
WP-AP/05 | 019 | Hex key for the CDJ600. |
1 | £2.54 |
|
WP-CDJ/03 | 003 | Replacement CDJ300 & CDJ600 clamp spring. |
4 | £1.07 |
|
WP-CDJ/05 | 005 | Replacement CDJ300 & CDJ600 clamp knob. |
2 | £5.82 |
|
WP-CDJ600/13 | 013 | Replacement knob for the CDJ600. |
2 | £2.91 |
|
WP-SCW/09 | 021 | Replacement screw. |
2 | £1.06 |
|
WP-SPAN/13P | 078 | Pressed steel spanner. |
1 | £4.92 |
|
WP-WASH/12 | 014 | Replacement washer. |
2 | £1.01 |
