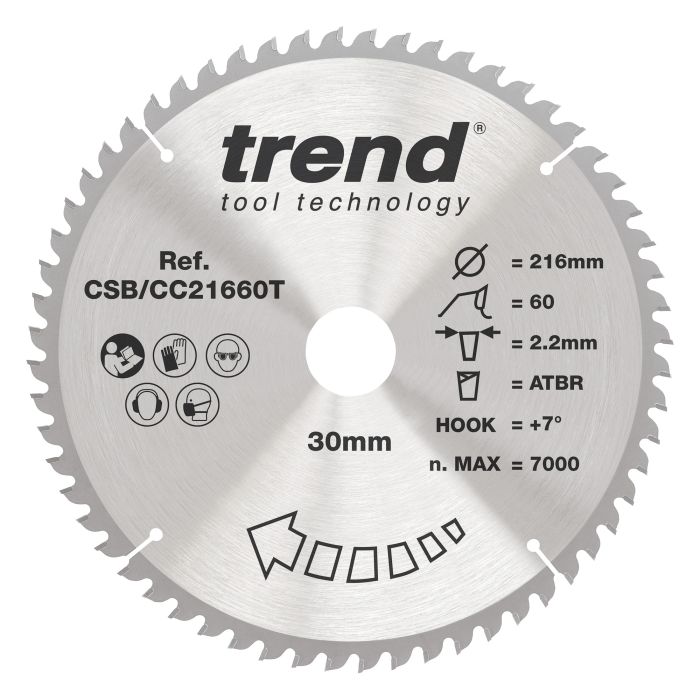

CSB/CC21660T - Trend Wood Cordless ATBR Mitre Saw Blade 216mm x 30mm x 60T
A range of thin kerf tungsten carbide tipped blades for cross-cutting wood and wood-based materials using cordless Mitre saws. Ideal for timber skirting boards, architraves, floorboards, window boards, cladding and decking.
- Alternate top bevel raker (ATBR) tooth form with +7° hook optimises cutting speed and performance for both ripping and cross-cutting applications.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Thin kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
- Compatible with Bosch Pro GCM 18V-216, Bosch Pro GCM 18V-216 D, Bosch Pro GCM 18V-216 DC, Dewalt DCS777, Erbauer EMIS216S18-LI, Festool KSC 60 EB, Festool SYMC 70 EB, Makita LS002G, Makita LS0815F, Metabo KGS 18 LTX 216, Metabo KGS 216 M, Metabo KGSV 72 XACT, Milwaukee M18 SMS216
Cordless TCT Sawblades
A range of Tungsten Carbide Tipped blades for crosscutting & ripping wood and wood-based materials using cordless mitre and circular saws
Cordless Timber Cross-Cut Sawblades
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with -5° Hook or Alternate Top Bevel +Raker (ATBR) Profile with +7° Hook.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with -5° Hook prevents self-feeding for a safe, controlled cutting action, while delivering a precise, clean cut. A Combination variant with an Alternate Top Bevel +Raker (ATBR) Profile with +7° Hook is also available.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D
- 8 1/2 inches
- D
- 216 mm
- Bore
- 30 mm
- Kerf
- 2.16 mm
- Plate thick
- 1.56 mm
- No. of Teeth
- 60
- Tooth form
- ATB + Raker
- Hook
- 7 degrees
- Quick Selector No.
- CT19.1
- Colour Code
- White Yellow
- Type
- Mitre Saw Crosscutting
- Cut Finish
- Extra fine
Dewalt DCS777N
- Max rpm
- 5000
