KWJ650 - 650mm Compact Worktop Jig

Name: KWJ650 - 650mm Compact Worktop Jig
SKU: KWJ650
Price: 79.43 GBP
Availability: InStock

KWJ650

£79.43

Add to Wish List

Details

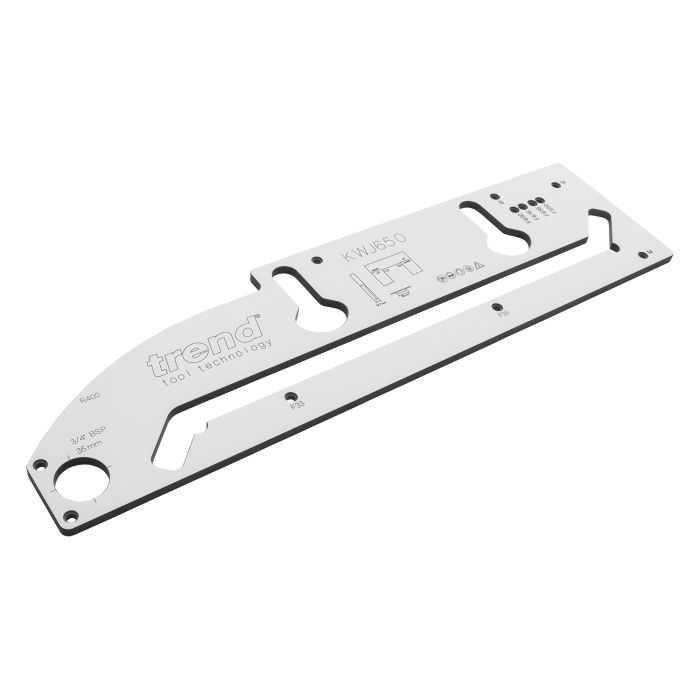

A worktop routing jig for creating mitre joints in laminated, timber and compact laminate surfaces.

Indexed Backsets for 600, 616, 635, and 650mm worktops allow the female joint to be setup quickly.
33mm Mitre Inset to suit all postformed, radiused and chamfered worktop materials.
CNC-Machined Compact Grade HPL provides precision, strength and durability
400mm Radius for breakfast bar and peninsula trimming.
Preset Connector Bolt Recesses accommodate standard 150mm worktop bolts.
35mm Hinge / ¾” BSP Recess for surface-mount monobloc tap and concealed hinge installation.
Requires: ½”/12mm Plunge Router (50mm plunge depth), ½”/12mm Router Cutter (12.7mm cut diameter x 50mm cut length), 30mm Guide Bush, and 2 x clamps.

Spec

Length: 881 mm
Width: 236 mm
Thickness: 12 mm
Weight: 3.3kg
Female cut material width loss (inset): 33 mm
Curved Peninsular Radius: 400mm
Bolt recesses: 2

Requires:

Guide bush: 30 mm
Plunge router: 1/2-inch (min. 1300 watts)
Cutter: 12.7 mm x 50 mm cut
Clamps: Two

Customer Review

Spares

Product Image

Product Ref

Diagram No

Description

Quantity Required

Price for 1

KWJ/PIN/4

Trend Location Pins - For Trend KWJ700 and KWJ900 Worktop Jigs. Pack of 4.

Set of four accurately machined replacement plastic location pins for the Trend KWJ700, KWJ900, KWJ700/PRO and KWJ950/PRO jigs.
Replacement pins to ensure the Trend Jigs continue offering professional results.
Essential part of ensuring accurate worktop joints.
Assured, consistent accurate joints every time.
Perfectly matched to the Trend jigs for fast and easy set up.

£10.16

Videos & Downloads

Videos

The 650mm Kitchen Worktop Jig - KWJ650

This video demonstrates the compact 650mm worktop jig in action.

Instructions

KWJ650 Worktop Jig Instruction Manual in EN,DE,FR,NL,DK,SE,NO & FI

Ref: MANU/KWJ650 v 3.0

Safety Sheets

Cutting Tools & Routing Safety Sheet

Ref: LEAF/HS/CUTT

Jig and Accessory Safety Points

FAQ

Product Questions

My worktop jig instructions say a 30mm guide bush and a 12.7mm cutter I have a long 50mm x 12.00mm cutter with my lock jig why cant I use this and what will happen if I do.

The worktop jigs are designed to work with a GB30A guide bush and A 12.7mm cutter the male and female curves on the jig are matched with 12.7mm cutters if you use a 12mm cuter the radiuses will not come together properly.

When Using Trend’s Kitchen Worktop Jigs, can you use a different combination of cutter and guide bush E.G 12mm Cutter & 30mm Guide bush?

No, the correct combination of 12.7mm diameter cutter and 30mm Guide bush has to be used as the offset needed between cutter and guide bush is 8.7mm, any other combination will result in a poor joint.
