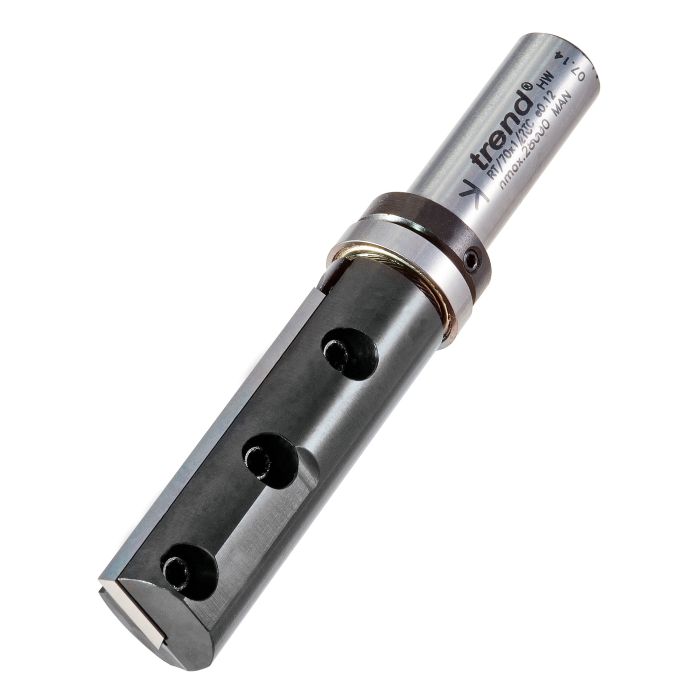

RT/70X1/2TC - Rota-Tip profiler 19.1mm diameter
RT/70X1/2TC
For template work.
- Blade can be rotated 180 degree to give double the life of a conventional tool.
- Cutter diameter of 19.1mm and bearing diameter of 19.05mm.
- Spare blade for Ref. RT/70 from January 2013 is ref RB/T (three hole).
- Ref. RT/70 has single flute.
- Ref. RT/72 has two flutes.
- D
- 1 31/32 inch
- D
- 19.1 mm
- C
- 3/4 inch
- C
- 49.5 mm
- B
- 19.1 mm
- OL
- 100 mm
- A
- 90 degrees
- Shank Diameter
- 1/2 inch
- Spare blade 2 hole
- RB/B
- Spare blade 3 hole
- RB/T
Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
---|---|---|---|---|---|
![]() |
B19C | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
£10.48 | ||
![]() |
COLL/12 | Collar Packs are used for cutters with shank mounted bearings.
|
£4.95 | ||
![]() |
RB/T | Replacement Solid Carbide blades. |
£15.27 | ||
![]() |
RT/3.5 | Trend Rota-tip replacement screws - Torx fitting M3.5, 5mm thread.
|
£4.24 | ||
![]() |
RT/KEY | Replacement key for the rota-tip cutters.
|
£7.42 |
