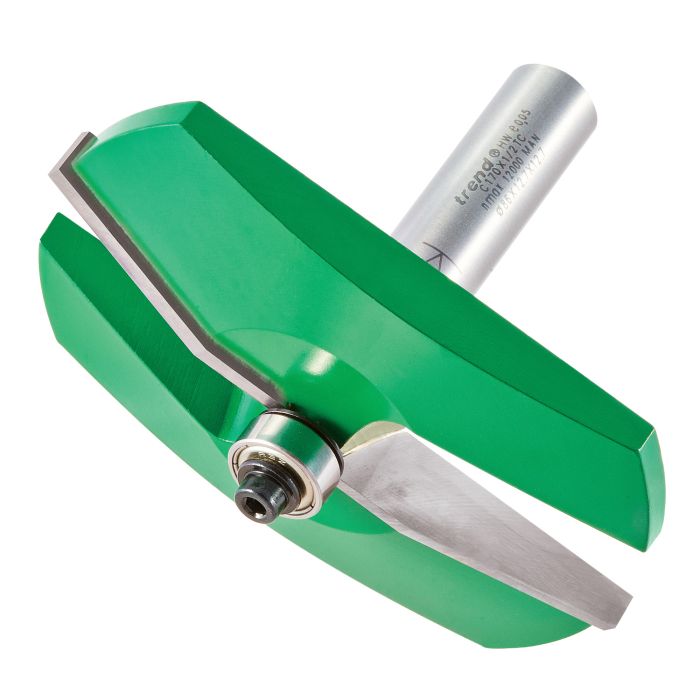

C170X1/2TC - Bearing guided bevel panel raiser 15 degrees

Name: C170X1/2TC - Bearing guided bevel panel raiser 15 degrees
SKU: C170X1/2TC
Price: 93.01 GBP
Availability: InStock

C170X1/2TC

£93.01

Add to Wish List

Details

Panel raiser cutters for producing the panel for cabinet panelled doors, tool matches our range of profile scribers. Suitable for use on natural timber and MDF.

For use in a router table only.
Take several passes, increasing the depth with each pass.
Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed. For use on natural timber and MDF.
Stationary use only.

Spec

D: 86 mm
C: 1/2 inch
C: 12.7 mm
B: 12.7 mm
A: 15 degrees
OL: 75 mm
Shank Diameter: 1/2 inch

For stationary machines at max. recommended speed 12,000 RPM

Customer Review

Spares

Product Image

Product Ref

Diagram No

Description

Quantity Required

Price for 1

B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

High quality ball bearing for free running against an edge to prevent heat build up.
3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
1/2in outside diameter for matched fit to trimming and templating cutters.
Bearings are grease packed for maximum efficiency and lifespan.
Shielding to both sides of the bearing prevents penetration of dust for maximum performance.

£6.93
