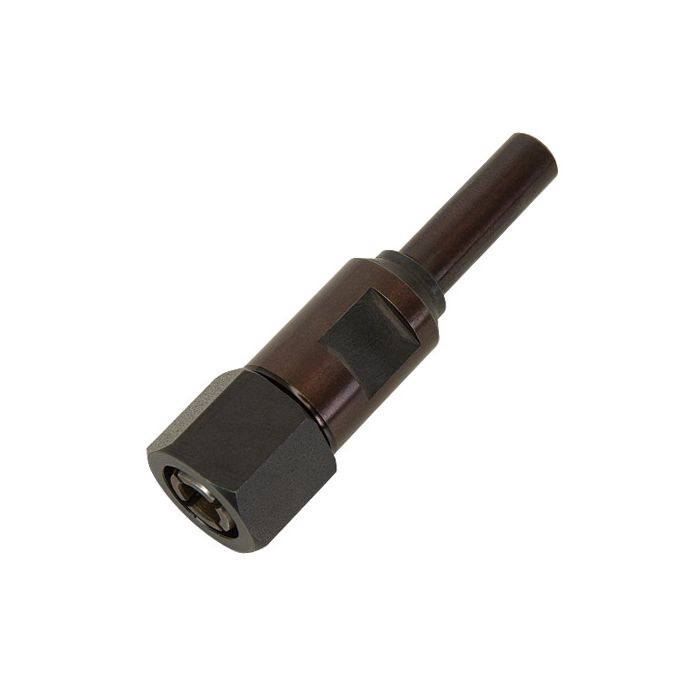

CE/8635 - Collet extension 8mm shank 1/4" collet
CE/8635
For use in router tables where there is a limited router cutters shank length available.
- Precision machined one-piece steel body.
- With an 8mm shank, fitted with a multi-slit spring steel collet and collet nut.
- Should be used with medium duty routers of minimum 850 watts, use at maximum speed 18000 RPM and maximum cutter diameter 35mm.
- Increases spindle length by 41mm.
- Maximum tool cut length 25mm.
- Requires 12mm & 17mm A/F spanners.
- Accessory collet and nut sets available for other shank diameters.
- Shank size
- 8 mm
- Collet bore
- 6.35 mm (1/4 inch)
- Overall length
- 64 mm
- Nut dia. max.
- 19 mm
- Maximum speed
- 18000 rpm
- Maximum tool dia
- 35 mm
- Maximum tool cut
- 25 mm
- Requires spanners
- 12 mm & 17 mm A/F
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
CE/CNS/8/635 | B | Multi-slit spring steel collet & nut set for the 8mm shank collet extension. |
1 | £30.83 |
|
CE/NUT/8 | C | Replacement collet nut for the 8mm collet extension. |
1 | £10.88 |
Instructions
This product includes:
Accessories
-
CE/CNS/8£60.64
