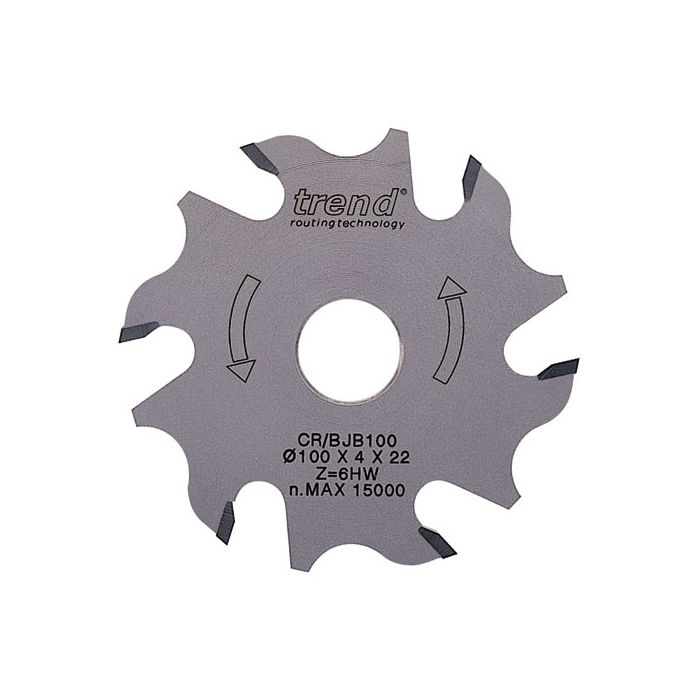

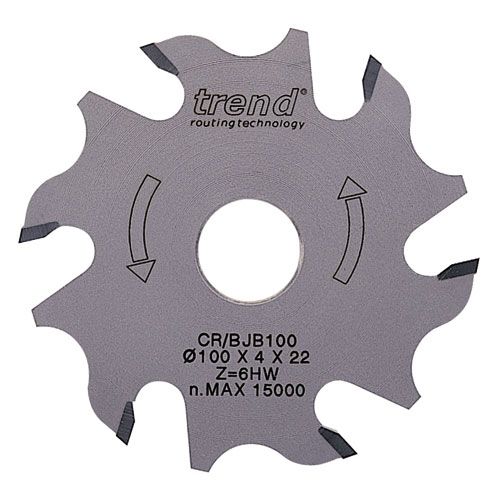

CR/BJB100 - Trend Biscuit Jointer Saw Blade 100mm x 22mm x 6T
Anti-kickback tungsten carbide tipped blades for recessing jointing biscuits. Features a 22mm bore x 4mm kerf, and compatible with DeWalt, Makita, Einhell, Erbauer and Triton biscuit jointers. Suitable for natural timbers, particle board and MDF.
- Alternate top bevel (ATB) profile with +18° Hook delivers an efficient cutting action for fast stock removal.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Anti-kickback shoulders prevent deflection and limit the feed-speed to minimise kickback.
- Reamed bore ensures precise spindle fit.
Biscuit Jointer TCT Blades
Anti-kickback Tungsten Carbide Tipped blades to fit 100mm biscuit jointers, for recessing joinery biscuits. Features a 22mm bore x 4mm kerf, and is compatible with Trend, Freud, Casals, Erbauer, Dewalt and Makita biscuit jointers. Suitable for natural timbers, particle and MDF boards.
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with +18°Hook delivers an efficient cutting action for fast stock removal.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with +18°Hook delivers an efficient cutting action for fast stock removal.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Anti-Kickback Shoulders prevent deflection and limit the feed-speed to minimise kickback.
- Reamed Bore ensures precise spindle fit.
Featured Products
Discover more about Trend Saw & Biscuit Jointer Blades
Sawblade Range Information
Biscuit Jointer Blade Products
Sawblade Videos
- D
- 100 mm
- Bore
- 22 mm
- Kerf
- 4 mm
- Plate
- 3 mm (3.4 mm with boss)
- No. of Teeth
- 6
Elu DS140
Dewalt DW685
no spare products
Instructions
Safety Sheets
Product Questions
Yes, the BJB/100S or CR/BJB100 are the equivilent Trend blades.
