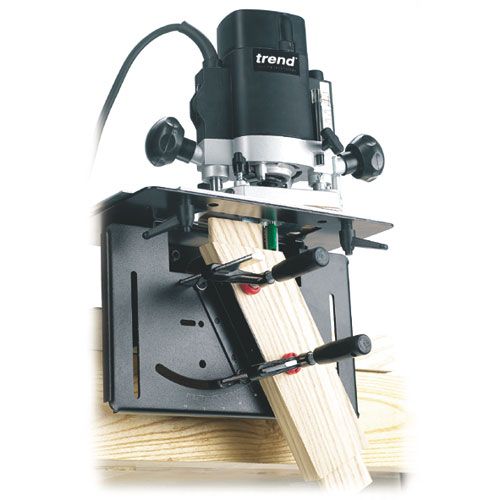

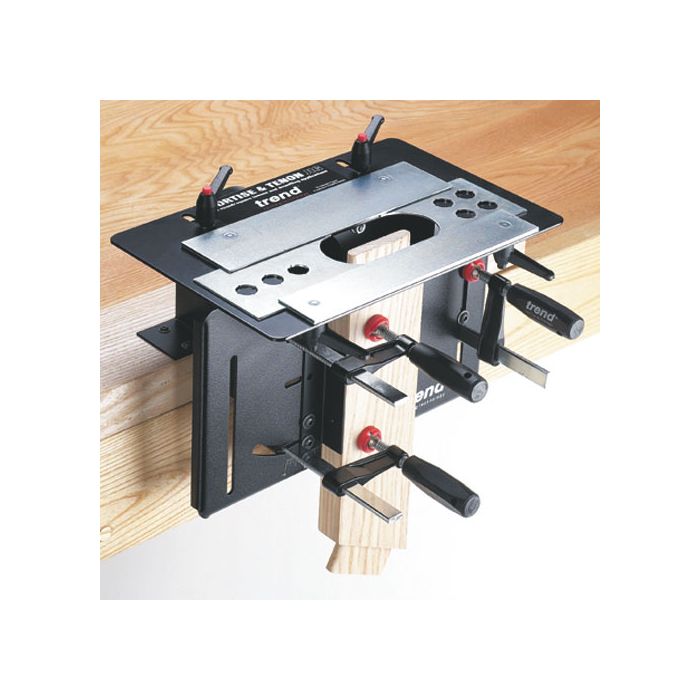

MT/JIG - Mortise and Tenon Jig (Imperial Size)

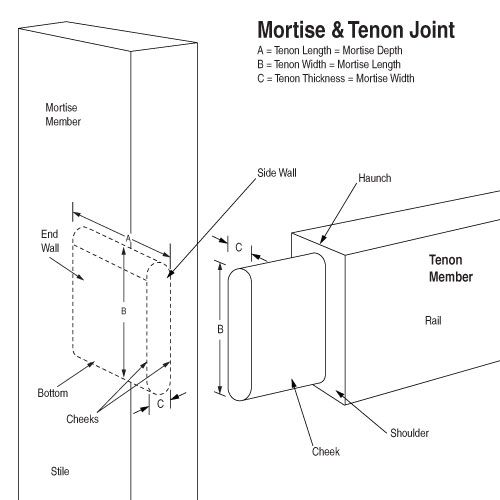

Enables mortise & tenons and dowel joints to be cut with a router.
- Ideal for cabinet, chair and table.
- CNC precision manufactured plates and body.
- One set-up for both mortise and tenon giving perfectly fitting joints.

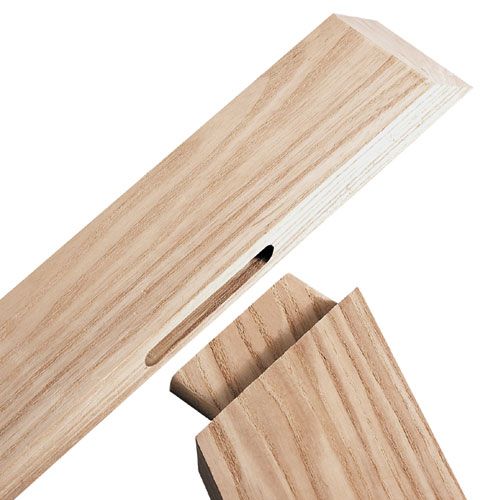

- Fully adjustable for compound angle joints up to 45 degree.
- Reversible templates to produce round and square end tenons.

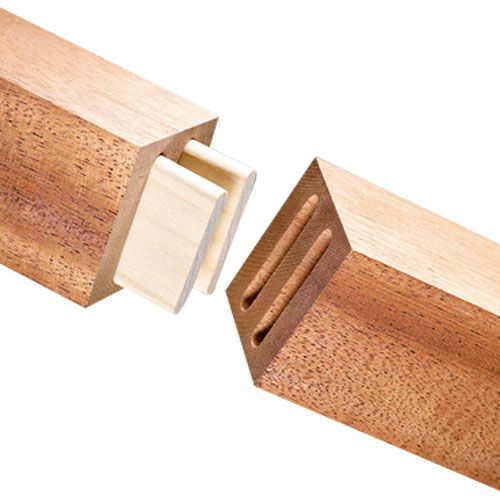

- Templates can be used for accurate dowelling applications.
- Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm).
- Guide bushes are included but cutters are required.
- A Unibase may be required for certain makes & models of router.
- All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026).
- The width of the tenon is adjusted by using different guide bush diameters.
- Jig requires:
- A portable plunge router with 6.35 mm (1/4 inch) shank capacity.

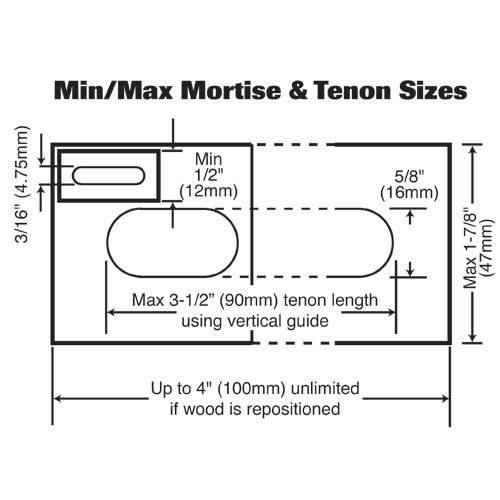

- Material thickness min.
- 12 mm
- Material thickness max.
- 47 mm
- Tenon thickness min.
- 4.8 mm
- Tenon thickness max.
- 16 mm
- Tenon width max. using vertical guide+
- 90 mm
- Tenon length max.++
- Approx. 25 mm
- Mortise length max. using vertical guide+++
- 90 mm
- Angle tilt compound
- -10 degree to 45 degrees
++ depends on cut length and plunge depth of the router.
+++unlimited if vertical guide removed and wood repositioned.
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
CR/KB/PK8 | 017 | Made from reinforced plastic with lift and lock ratchet system, with a steel studding. |
2 | £10.48 |
|
CR/KB/PK9 | 019 | Made from reinforced plastic with lift and lock ratchet system, with a steel tapped insert. |
2 | £10.48 |
|
GB/COLL/25454 | 025 | Aluminium collar to fit guide bushes.
|
1 | £9.14 |
|
GB254 | 024 | Guide bush guides the router when using a template.
|
1 | £11.90 |
|
WP-MT/01A | 001A | F clamp interim for the MT/JIG.
|
4 | £13.33 |
|
WP-MT/02/UK | 002 | Set-up bar for the MT/JIG with imperial and metric measurements. |
1 | £12.59 |
|
WP-MT/03 | 003 | Replacement Trend label for the MT/JIG. |
1 | £1.05 |
|
WP-MT/10 | 010 | Replacement pivot bush for the MT/JIG. |
3 | £2.01 |
|
WP-MT/11 | 011 | Replacement 'F' clamp square cap for the MT/JIG. |
1 | £1.07 |
|
WP-MT/15 | 015 | Replacement long template for the MT/JIG. |
1 | £22.95 |
|
WP-MT/16 | 016 | Replacement short template for the MT/JIG. |
1 | £22.95 |
|
WP-MT/23/UK | 023 | Replacement guide bush set for the MT/JIG. |
2 | £33.52 |
|
WP-SCW/73 | 022 | Replacement socket button flange screw. |
6 | £1.07 |
|
WP-SCW/75 | 018 | Replacement socket button screw. |
3 | £1.07 |
|
WP-WASH/12 | 021 | Replacement washer. |
2 | £1.01 |
Videos
Mortise & Tenon Jig Demonstration Video
A demonstration of the features and how to use the Trend Mortise & Tenon jig.
Mortise & Tenon Jig - Sample Chair Video
The Mortise & Tenon Jig sample chair.
Safety Sheets
Test Reviews
Product Questions
1/4 (6.35mm) mortise max depth 26mm|5/16 (8mm) mortise mx depth 35mm|3/8 (9.5mm) mortise max depth 38mm|1/2 (12.7mm) mortise max depth 38mm|5/8 (15.9mm) mortise max depth 40mm.
In the UK and America, jigs work in imperial sizes the cutter set required is SET/MT1X1/4TC, SET/MT1X8MMTC. For jigs set up in millimetres the cutter set required is SET/MT2X8MMTC.
Yes, it cuts tenons up to 45 degrees.
No. There is a set available as a separate item.
47mm.
Yes. 8 different tenon sizes are possible.
The max timber sizes are 50mm x 140mm
May also need
-
R/POD/A£11.12
This product includes:
Accessories
-
GB158£13.12 -
GB222£11.90 -
GB238£11.90 -
GB27£11.90 -
GB286£11.90 -
GB302£11.90 -
GB318£11.90 -
GB333£11.90 -

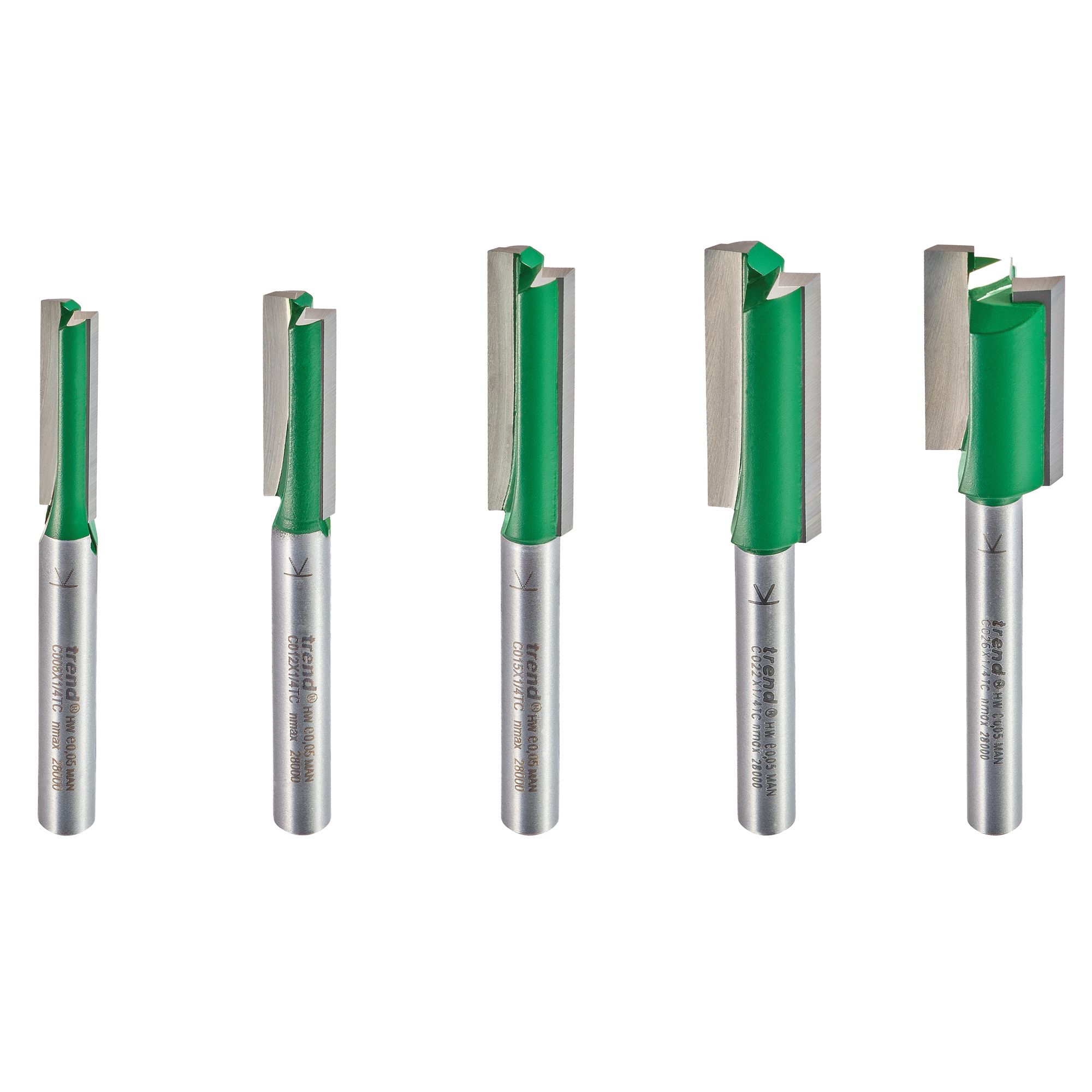

SET/MT1X1/4TC£88.40 -
SET/MT1X8MMTC£88.40
