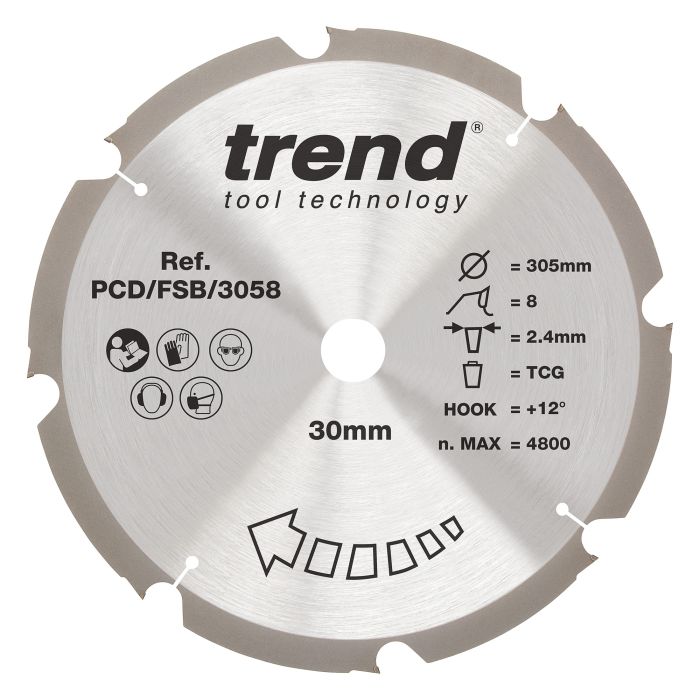

PCD/FSB/3058 - Trend PCD Fibre Cement Circular Saw Blade 305mm x 30mm x 8T
A range of polycrystalline diamond blades for cutting a wide variety of ultra-hard and abrasive materials. For use in circular, plunge, table and mitre saws, Trend PCD Fibre Cement blades are exceptionally durable and retain their cutting edge for longer than TCT alternatives. Ideal for AQUAPANEL®, HardieBacker®, gypsum, composite decking & cladding, laminate flooring, fibre & glass reinforced polymer and compact laminate worktops.
- Precision EDM-ground polycrystalline diamond (PCD) tips for optimum edge retention and cut quality in abrasive sheet materials.
- Triple chip ground (TCG) tooth form with +12° hook for a clean, controlled, efficient cutting action through tough materials.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Compatible with Bosch Pro GCM 12 GDL, Bosch Pro GCM 12 SDE, Bosch Pro GCM 18V-305 GDC, Dewalt DCS781, Dewalt DHS780, Dewalt DWS780, Erbauer EMIS305S, Hikoki C12RSH2, Makita DLS211, Makita LS003G, Makita LS1216, Makita LS1216L, Makita LS1216F, Makita LS1216FL, Makita LS1219, Makita LS1219L, Metabo KGS 305 M, Milwaukee M18 FMS305, Ryobi EMS305RG
PCD Sawblades
Shop a variety of Polycrystalline Diamond Tipped sawblades with different tooth forms, tooth counts and hook angles for circular, mitre and plunge saws. Designed to cut composite decking, fibre cement board/cladding, carbon fibre-reinforced polymer, glass-reinforced plastic, compact laminate and MDF.
Features
Polycrystalline Diamond (PCD) Tips for precision EDM-ground for optimum edge retention and cut quality.
The Triple Chip Ground Profile with +12° Hook for a clean, controlled, efficient cutting action through tough and brittle materials.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
- Polycrystalline Diamond (PCD) Tips precision EDM-ground for optimum edge retention and cut quality in the most abrasive sheet materials.
- Triple Chip Ground Profile (TCG) with +12° Hook for a clean, controlled, efficient cutting action through tough and brittle materials.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
Featured Products
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D1
- 12 inches
- D1
- 305 mm
- Bore
- 30 mm
- Kerf
- 2.4 mm
- Plate thick
- 1.8 mm
- No. of Teeth
- 8
- Tooth form
- TCG
- Hook
- 12 degrees
- Quick Selector No.
- C30.1
- Max rpm
- 4500
It is recommended that the blade should not project more than 1mm out of bottom of substrate.
