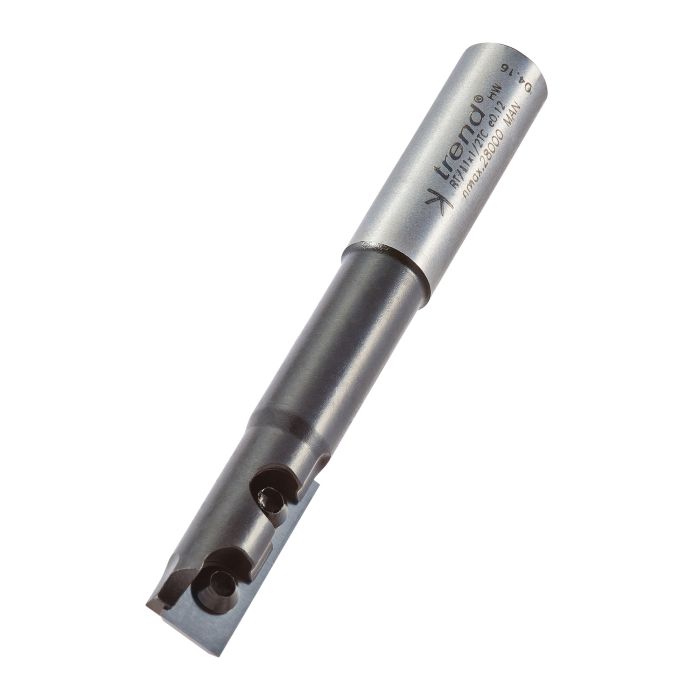

RT/11X1/2TC - Rota-Tip straight 12.7mm diameter
RT/11X1/2TC
Solid Carbide replaceable blades.
- Tool body remains in place when changing blades, thus reducing down-time.
- Straight cutters have blades with two or four cutting edges, allowing them to be rotated and locked in identical positions.
- 1/2 inch shank tools are ideal for use in production applications.
- Clear economical advantage over conventional brazed tip tooling.
- The single blade can be rotated 180 degrees to give double the life of a conventional tool.
- Ideally suited for use with Trend Combi worktop jigs.
- Suitable for plunge cutting.
- D
- 1/2 inch
- D
- 12.7 mm
- C
- 29.5 mm
- OL
- 100 mm
- Shank Diameter
- 1/2 inch
With relieved neck, giving 50 mm length of cut capability when taking a series of passes.
Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
---|---|---|---|---|---|
![]() |
RB/A | Replacement Solid Carbide blades. |
£10.25 | ||
![]() |
RB/A/10 | Trend Rota-Tip Replaceable Cutters - 29.5mm long.
|
£90.35 | ||
![]() |
RT/3.5 | Trend Rota-tip replacement screws - Torx fitting M3.5, 5mm thread.
|
£4.24 | ||
![]() |
RT/KEY | Replacement key for the rota-tip cutters.
|
£7.42 |
