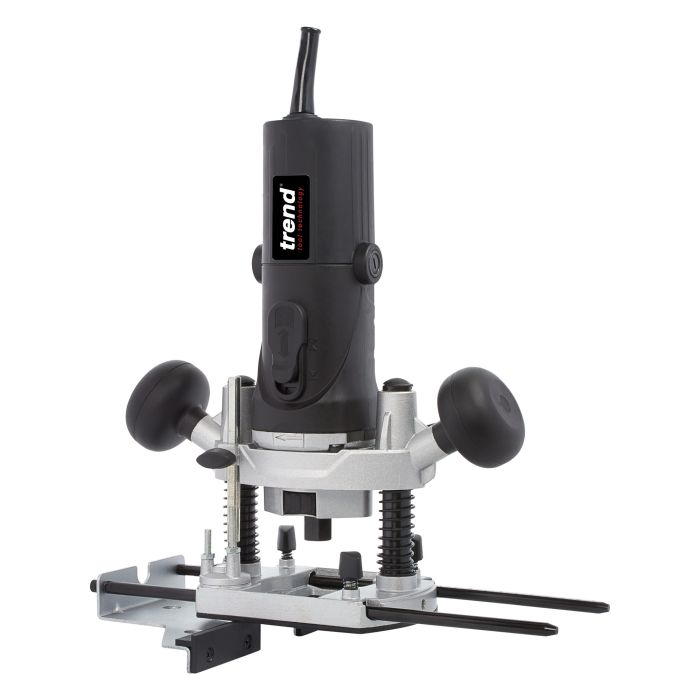

T4EK/EURO - 850W 8mm Variable Speed Plunge Router 230V EU
Lightweight, compact plunge router, with a removeable motor body. Ideally suited to overhead working and perfect for hinge recess cutting, timber profiling and hand carving.
- Removeable Motor Body can be easily detached from the base for hand carving and die grinding applications.
- Anti-Restart Protection prevents the router from accidental start-up if the power supply is interrupted or lost and restored.
- 7-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Side Fence for edge rebating, grooving and moulding applications.
- ¼”, 6mm & 8mm Collets are supplied for maximum versatility.
- Plunge Depth Limiter is easy to set and prevents over-cutting.
- 3-Position Rotating Turret to pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
- Trend Base Configuration is a standardised pattern of fixing holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
- Spindle Lock for quick and easy cutter changes.
- Replaceable Carbon Brushes are easily accessible and simple to change for extended motor life.
- Moulded Carry Case provides safe storage for router and accessories.
- *3 year warranty – Online registration required
- Duty Rating
- Light / Hobbyist
- Motor Power
- 850 W
- AC Voltage
- 230 V
- Plug Type
- EU Euro 2 pin
- Supplied Collet Size
- ¼” + 8 mm + 6 mm
- Plunge Stroke (Max)
- 35 mm
- No-Load Speed
- 11,500 – 32,000 rpm
- Supplied Guide Bush
- 16 mm
- Fence Rod Length
- 300 mm
- Fence Rod Centres
- 84 mm
- Fence Rod Diameter
- 8 mm
- Base Aperture Diameter
- 40 mm
- Cutter Diameter (Max)
- 30 mm
- Dust Spout Internal Diameter
- 35 mm
- Motor collar dia
- 43 mm
- Sound pressure Lpa
- 85 dB(A)1
- Acoustic Pressure Lwa
- 96 dB(A)2
- Hand Arm Vibration
- <3.0 m/s2
- Weight (Net)
- 2.8 kg
- Cable Length
- 2.1 m
- End of Life
- See below for Environmental Policy link
Built in power shut off will not work with router table NVR switch.
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
CLT/NUT/T4 | 35 | Replacement collet nut. |
1 | £6.04 |
|
CLT/T4/8 | 34 | One piece collet for the T4EK.
|
1 | £6.91 |
|
WP-NUT/05 | 52 | Replacement nut. |
3 | £1.06 |
|
WP-SCW/09 | 64 | Replacement screw. |
2 | £1.06 |
|
WP-SCW/11 | 63 | Replacement machine screw. |
2 | £1.06 |
|
WP-SCW/66 | 66 | Machine screw. |
4 | £1.06 |
|
WP-SPAN/14P | 71 | Pressed steel spanner. |
1 | £4.84 |
|
WP-T4/003 | 03 | Spare base for the T4 router. |
1 | £11.28 |
|
WP-T4/004 | 04 | The spring washer for the T4 router. |
1 | £1.06 |
|
WP-T4/005 | 05 | The washer for the T4 router. |
2 | £1.06 |
|
WP-T4/008 | 08 | The carbon brush cover for the T4 router. |
2 | £1.06 |
|
WP-T4/013 | 13 | The base column end cap for the T4 router. |
2 | £1.06 |
|
WP-T4/014 | 14 | The left hand plunge lever locking screw for the T4 router. |
1 | £1.49 |
|
WP-T4/018 | 18 | The push rod for the T4 router. |
1 | £1.06 |
|
WP-T4/025 | 25 | The top bearing for the T4 router. |
1 | £5.70 |
|
WP-T4/027 | 27 | The lower bearing housing for the T4 router. |
1 | £5.00 |
|
WP-T4/028 | 28 | The lower bearing for the T4 router. |
1 | £5.70 |
|
WP-T4/030 | 30 | The collar with a left handed thread for the T4 router. |
1 | £1.97 |
|
WP-T4/032 | 32 | The bearing lock plate for the T4 router. |
1 | £2.87 |
|
WP-T4/033 | 33 | The collet spring for the T4 router. |
1 | £1.97 |
|
WP-T4/036 | 36 | The depth stop for the T4 router. |
1 | £1.97 |
|
WP-T4/037 | 37 | The middle frame for the T4 router. |
1 | £10.00 |
|
WP-T4/038 | 38 | The thumb knob for the T4 router. |
1 | £1.97 |
|
WP-T4/039 | 39 | The spring for the T4 router. |
1 | £1.06 |
|
WP-T4/043 | 43 | The plunge lock lever for the T4 router. |
1 | £1.97 |
|
WP-T4/045 | 45 | The plunge lever torsion spring for the T4 router. |
1 | £1.97 |
|
WP-T4/046 | 46 | The grip knob for the T4 router. |
2 | £3.61 |
|
WP-T4/047 | 47 | The plunge spring for the T4 router. |
2 | £1.97 |
|
WP-T4/048 | 48 | The plunge column for the T4 router. |
2 | £5.70 |
|
WP-T4/050 | 50 | The dust extraction spout for the T4 router. |
1 | £3.79 |
|
WP-T4/051 | 51 | The threaded pin for the T4 router. |
1 | £1.06 |
|
WP-T4/053 | 53 | The threaded pin for the T4 router. |
1 | £1.06 |
|
WP-T4/056 | 56 | The revolving turret for the T4 router. |
1 | £1.97 |
|
WP-T4/060A | 60 | The grub screw for the T4 router. |
1 | £1.06 |
|
WP-T4/061 | 61 | The plastic slider base for the T4 router. |
1 | £2.87 |
|
WP-T4/062 | 62 | The revolving guide 'o' ring for the T4 router turret stop. |
1 | £1.06 |
|
WP-T4/065 | 65 | The guide rods for the T4 router. |
1 | £8.07 |
|
WP-T4/067 | 67 | The side fence cheeks for the T4 router. |
1 | £3.79 |
|
WP-T4/068 | 68 | The parallel side fence body for the T4 router. |
1 | £8.07 |
|
WP-T4/069 | 69 | The spanner for the T4 router. |
1 | £4.84 |
|
WP-T4/076 | 76 | The spindle lock housing for the T4 router. |
1 | £8.07 |
|
WP-T4/077 | 77 | The spindle lock bracket for the T4 router. |
1 | £4.25 |
|
WP-T4/078 | 78 | The spindle lock button for the T4 router. |
1 | £1.06 |
|
WP-T4/079 | 79 | The spindle lock plate for the T4 router. |
1 | £1.97 |
|
WP-T4/080 | 80 | The spindle lock spring for the T4 router. |
1 | £1.06 |
|
WP-T4/081 | 81 | The dust spout lower housing for the T4 router. |
1 | £1.97 |
|
WP-T4/082 | 82 | The switch base for the T4 router. |
1 | £2.17 |
|
WP-T4/084 | 84 | The machine screw for the T4 router. |
1 | £1.06 |
|
WP-T4/087 | The parallel side fence complete with rods for the T4 & T18S/R14 routers.
|
£15.96 | ||
|
WP-T4E/007 | 07 | The speed control circuit board for the T4 router.
|
1 | £21.67 |
|
WP-T4E/010 | 10 | Brush set to suit the T4EK router. |
1 | £6.27 |
|
WP-T4E/017 | 17 | Replacement switch for the T4EK router.
|
1 | £4.28 |
|
WP-T4E/022 | 22 | The field coil for the T4 router. |
1 | £25.40 |
|
WP-T4E/026 | 26 | The armature with fan for the T4 router. |
1 | £32.02 |
