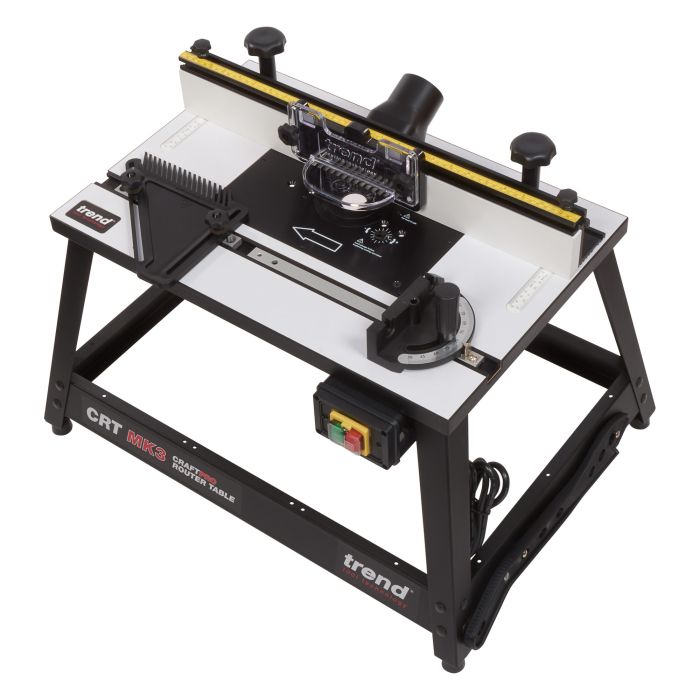

CRT/MK3/EURO - Portable Benchtop Router Table 230V EU
Robust construction for workshop and site use with precision engineered components to deliver high quality, consistent and accurate results. Perfect for Panel Raising, Templating and Batch Cutting applications.
- Steel Frame Construction designed for stability, durability, portability & easy router access.
- Large Laminated Table Top provides an ultra-durable, stable and flat surface for friction-free stock feeding.
- NVR Power Safety Switch allows safe operation from the table edge across a wide range of routers.
- 68mm Extra-Deep Adjustable Fence offers excellent support for a range of material thicknesses.
- Precision Aluminium Extrusion with a wide base, ensures perfect squareness of the fence facings to the table for accurate routing.
- Adjustable Melamine Facings with durable, smooth surfaces for easy and safe stock feeding.
- 57mm Dust Extraction Port provides high volume extraction to optimise safety, cut quality and accuracy.
- 6.35mm Anodised Aluminium Plate prevents deflection and sagging when heavy routers are fitted.
- Trend Base Configuration (TBC) features 3 screw holes for easy, direct mounting of Trend T8, Trend T11, Trend T14 and other compatible routers.
- Levelling Screws around the perimeter of the plate, to perfectly adjust the infeed and outfeed and prevent stock from snagging.
- Router Raiser Aperture allows the cutter height to be easily and safely adjusted from above the table (with Trend T11 & T14 routers).
- x7 insert Rings support stock transition past the cutter and maximise safety.
- Feather Boards apply even vertical and horizontal pressure to the stock as it passes the cutter.
- Mitre Fence with adjustable and indexed positions to create perfect angled cuts.
- Transparent Cutter Guard allows users to see the stock progression while keeping fingers away from the cutter.
- T-Slot Accessory Track for secure & flexible positioning of feather boards & guards.
- Jointing and Planing facility for straightening and planing stock.
- Lead-On Starter Pin for use when templating with bearing guided cutters.
- Lead-On Starter Pin Position for templating and curved work.
- Tall Fence Locking Knobs with user-friendly, oversized grips that sit above the fence for easy operation and prevention of knuckle injuries.
- Direction Arrow indicates the correct path for the stock to be fed safely past the cutter.
- Top Tape Scale with metric & imperial graduations for stopped cuts and repeat settings with WRT/2 (not supplied).
- Push Stick with ergonomic, long reach handle to safely slide thinner stock past the cutter.
- Push Stick Storage keeps it close at hand when not in use.
- Router Raiser Storage keeps the adjuster readily to hand on the infeed side of the table.
- Lead-On Starter Pin Storage for safe keeping.
- Cable Cleats keep power cable secure, safe and tidy.
- Non-Slip Feet keep the table in position during use or transportation.
Steel Frame Construction
Large Laminated Table Top
NVR Power Safety Switch
68mm Extra-Deep Adjustable Fence
Precision Aluminium Fence Extrusion
Adjustable Melamine Fence Facings
57mm Dust Extraction Port
6.35mm Anodised Aluminium Router Plate
Trend Base Configuration (TBC)
On-board Storage For Accessories
Tall Fence Locking Knobs
Jointing & Planning Facility
Key Applications
Router Table Fence
The fence provides substantial horizontal support to the stock when transitioning past the cutter. It should be strong, perfectly aligned to 90º and offer comprehensive, easy to make adjustments.
Adjustable Melamine Facings with durable, smooth facings for easy and safe stock feeding.
Full adjustability allows the facings to be as close to the cutter as possible to support stock past the cutter and maximise safety.
Each facing tightens with two locking knobs for a secure fit.
68mm Extra-Deep Adjustable Fence offers excellent support for a range of material thicknesses. The fence attaches to twin keyhole slots for quick and easy installation and removals.
Twin reference scales allow easy repeat backset positioning for fast setup and increased productivity.
Tall Fence Locking Knobs with user-friendly, oversized grips, that sit above the fence for easy operation and prevention of knuckle injuries.
57mm Dust Extraction Port provides high volume extraction to optimise safety, cut quality and accuracy.
Precision Aluminium Extrusion with a wide base, ensures perfect squareness of the fence facings to the table for accurate routing.
Jointing and Planing facility for straightening and planing stock.
The Planing Rods store on-board the fence for easy access.
Router Raiser Storage keeps the adjuster readily to hand on the infeed side of the table.
Lead-On Starter Pin Storage for safe keeping.
On-board storage positions
Router Table Construction
The CRT has a lightweight and rigid framework for easy handling and stable working with non-slip feet to keep the table securely in position during use or transportation. The Table is also compact and easily transportable from job to job, making it ideal for on-site and workshop applications including moulding and jointing.
Steel Frame Construction is designed for stability, durability, portability & easy router access.
Cable Cleats keeps the power cable secure, safe and tidy.
Push Stick Storage keeps it close to hand when not in use.
T-Slot Accessory Track for secure & flexible positioning of feather boards & guards.
Top Tape Scale with metric & imperial graduations for stopped cuts and repeat settings.
Large Laminated Table Top provides an ultra-durable, stable and flat surface for friction-free stock feeding.
Router Plate
The Router Plate fixes to the base of the router and holds it firmly in the correct position on the table. The plate should be strong, easy to adjust, minimise height loss and allow smooth passing of stock past the cutter. The Router Plate comes with 7 insert rings including a combination ring; the combination of guide bush and cutter gives infinitely variable offset variations.
Trend Base Configuration (TBC) features 3 screw holes for easy, direct mounting of Trend and other compatible routers.
A standardised fixing pattern of holes that allow routers to be attached to a range of compatible tables, jigs and accessories.
Learn more about Trend Base Configuration here.
Insert Rings to support stock transition past the cutter and maximise safety.
The Combination Ring provides an easy way to add Guide Bush functionality to the router table.
Perfect for “copy following” applications with a US style guide bush.
Lead-On Starter Pin Position for templating and curved work; learn more here.
Levelling Screws around the perimeter of the plate to perfectly adjust the infeed and outfeed and prevent stock from snagging.
6.35mm Anodised Aluminium Plate prevents deflection and sagging when heavy routers are fitted.
Direction Arrow indicates the correct path for the stock to be fed safely past the cutter.
Router Raiser Aperture allows the cutter height to be easily and safely adjusted from above the table for perfect accuracy, alignment and finish.
Height Adjuster not included with CRT (supplied with Trend T11 & T14 routers).
Router Table Accessories
The CraftPro Router Table is supplied with an assortment of useful router table accessories, including a Mitre Fence, NVR Power Switch, Feather Boards, Cutter Guard, Lead-on Pin & Pushstick, see the full list here.
Vertical and horizontal feather boards are supplied and apply pressure to keep the work tight against the fence and table to prevent kickback and reduce chatter. The supplied Mitre fence is also Spelch board compatible, which pushes up against the trailing edge of the stock to give the cleanest possible cut. The NVR Power Safety Switch allows safe operation from the table edge across a wide range of routers and also prevents the router from automatically restarting after a power cut or interruption to further maximise safety.
Feather Boards apply even vertical and horizontal pressure to the stock as it passes the cutter.
They can be used separately or as a pair and allow up to 60mm deep and 130mm wide material to be routed with them in place.
Tall, twist locking handle for easy and safe control on the Mitre Fence with adjustable and indexed positions to create perfect angled cuts.
+/- 30º range with indented positions at 90º, 75º, 60º, 45º and 30º for accurate repeat cuts.
For jointing and moulding on end grain or angled work. Also for tenon work with straight cutters to achieve consistent and accurate results.
Spelch block compatible (a small piece of sacrificial stock that can be attached to the fence to prevent cutter breakout)
The Lead-On Starter Pin allows users to safely introduce larger or curved material onto a bearing guided cutter.
Attempting this without a Lead-On Starter Pin is dangerous as the material is likely to kick back and cause injury. The pin supports the workpiece to allow the material template to engage the cutter bearing safely.
The pin fits into a dedicated threaded position on the router plate and should only be used in combination with a bearing guided cutter and with the rear fence removed.
The front-mounted NVR Switch supplies AC power to the router via the socket* on the side, eliminating the need to access the router power switch. The router is now independently controlled by the NVR switch for safe operation.
Push Stick with an ergonomic, long reach handle to safely slide thinner stock past the cutter.
Transparent Cutter Guard allows users to see the stock progression while keeping fingers away from the cutter.
Featured Products
CRT MK3
Portable Benchtop Router Table
Robust construction for workshop and site use with precision engineered components to deliver high quality, consistent and accurate results. Perfect for Panel Raising, Templating and Batch Cutting applications.
CRT/MK3 (240V)
CRT/MK3L (110V)
CRT/MK3/EURO (230V)
Supplied with Type C (Euro) Plug. For sale in Europe only.
Other Featured Products
Details & Specifications
Details
- Steel Frame Construction designed for stability, durability, portability & easy router access.
- Large Laminated Table Top provides an ultra-durable, stable and flat surface for friction-free stock feeding.
- NVR Power Safety Switch allows safe operation from the table edge across a wide range of routers.
- 68mm Extra-Deep Adjustable Fence offers excellent support for a range of material thicknesses.
- Precision Aluminium Extrusion with a wide base, ensures perfect squareness of the fence facings to the table for accurate routing.
- Adjustable Melamine Facings with durable, smooth surfaces for easy and safe stock feeding.
- 57mm Dust Extraction Port provides high volume extraction to optimise safety, cut quality and accuracy.
- 6.35mm Anodised Aluminium Plate prevents deflection and sagging when heavy routers are fitted.
- Trend Base Configuration (TBC) features 3 screw holes for easy, direct mounting of Trend and other compatible routers.
- Levelling Screws around the perimeter of the plate, to perfectly adjust the infeed and outfeed and prevent stock from snagging.
- Router Raiser Aperture allows the cutter height to be easily and safely adjusted from above the table (with Trend T11 & T14 routers).
- x7 insert Rings support stock transition past the cutter and maximise safety.
- Mitre Fence with adjustable and indexed positions to create perfect angled cuts.
- Transparent Cutter Guard allows users to see the stock progression while keeping fingers away from the cutter.
- T-Slot Accessory Track for secure & flexible positioning of feather boards & guards.
- Jointing and Planing facility for straightening and planing stock.
- Lead-On Starter Pin for use when templating with bearing guided cutters.
- Lead-On Starter Pin Position for templating and curved work.
- Tall Fence Locking Knobs with user-friendly, oversized grips that sit above the fence for easy operation and prevention of knuckle injuries.
- Direction Arrow indicates the correct path for the stock to be fed safely past the cutter.
- Top Tape Scale with metric & imperial graduations for stopped cuts and repeat settings with WRT/2 (not supplied).
- Push Stick with ergonomic, long reach handle to safely slide thinner stock past the cutter.
- Push Stick Storage keeps it close at hand when not in use.
- Router Raiser Storage keeps the adjuster readily to hand on the infeed side of the table.
- Lead-On Starter Pin Storage for safe keeping.
- Cable Cleats keep power cable secure, safe and tidy.
- Non-Slip Feet keep the table in position during use or transportation.
- Feather Boards apply even vertical and horizontal pressure to the stock as it passes the cutter
Accessories Included
Mitre fence
Top Feather board
Side Feather board
Push Stick
Insert rings
Edge planing rods
Lead-on pin
Spanner 10mm A/F
Hex key 3mm A/F
Cable management clips
Bench mounting brackets
Router screw fixing pack
The screws required are provided
Specifications
Discover more about the T14, The Perfect Workshop Router for the Perfect Router Table
Learn how to use a Router Table
Need something bigger? You might be interested in...
- Duty Rating
- Portable / Benchtop
- AC Voltage
- 230V
- Plug Type
- EU 2 pin
- Bench Height
- 410mm
- Tabletop Size
- 610 x 405 x 26mm (W/D/H)
- Back Fence Height
- 68mm
- Dust Spout Aperture
- 57mm
- Router Cutter Aperture
- 98mm
- Insert Ring Sizes
- 83 / 68 / 54 / 35 / 31.8/67.5 / 20mm
- Max Cutter Diameter
- 80mm
- Max Cutter Height
- 55mm
- Max Stock Length
- 590mm
- Max Stock Thickness (with pressures)
- 60mm
- Max Stock Width (with pressures)
- 120mm
- Edge Planing
- 1.4mm & 2.4mm
- Weight
- 13.6kg
- Power Cable Length
- 1.6m
- End of Life
- See environmental policy
no spare products
Videos
CRT/MK3 CraftPro Router Table - Product Overview
The Craft Router Table will suit craftsmen & woodworking enthusiasts.
The Trend Router Table - CRT/MK3
This video is an overview of the highly versatile Trend Router Table - CRT/MK3
CRT/MK3 Router Table - Biscuit Joints Video
TREND CRT/MK3 ROUTER TABLE - How to make biscuit joints.
Instructions
Safety Sheets
Spares Diagrams
Product Questions
The AEG MF 1400KE will fit both our WRT and CRT tables but redrilling of the router table insert plate is necessary.
The T7EK router is designed for kitchen fitting etc., it was not developed for use in a router table. If you want to use it in our router tables, the router base and/or table insert plate needs to be drilled for mounting. The switch is also a momentary type “dead mans” so if you want to use in our router tables the switch would need to be strapped closed, in this mode a no volt release switch must be used. (Supplied with both the WRT and CRT/MK3 as standard.) The best way to transfer the holes from the router to the table plate is to remove the black plastic plate of the bottom of the router line this up centrally to the hole in the table plate and transfer the six fixing holes onto the table plate and counter sink.
I am sorry but we do not have any information on the Excel router so we cannot advise you sorry. Please see our compatibility page for information on products compatible with the CRT/MK3.
No, not a direct fit.
The Makita RP2301FCXK can be fitted to our tables but redrilling of the table insert plate will be necessary.
The RT0700 Makita trimmer can be fitted to our tables when coupled with the Makita 195563-0 plunge base. The table insert plate would need to be redrilled to accept this.
The Ebauer ERB380ROU will fit our tables but re - drilling of the table insert plate is required.
There is a compatability button on the home page that lists all the makes and models of router and their compatability to Trend products.
The alloy track from the CRT/MK3 is available ref. WP-CRTMK3/38. The track is 600mm long with a neck width of 19.2mm
From the face of the back fence you can cut a groove with a maximum centre of 64.5mm.
The DW620 router fits both our WRT and CRT router tables without any modification.
Yes. with the use of part number CRT/3.
No, the T30/22 replaces the hose that comes with the T30 and will fit straight onto the CRT tables.
Use RTI/PLATE, this comes with alll the fixings necessary to make your own router table.
