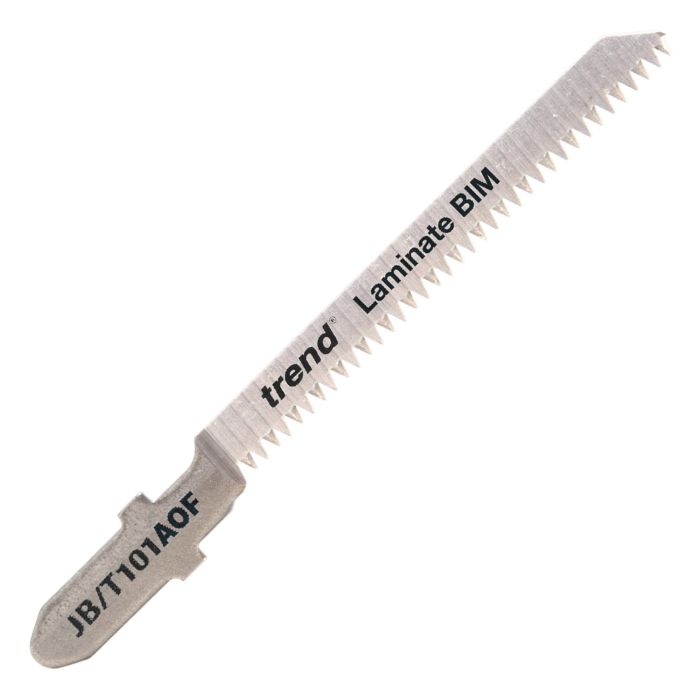

JB/T101AOF - Bi-Metal Laminate Jigsaw Blade 76mm, 5 Pack
High-performance, trade-rated jigsaw blades that deliver a fast, smooth cutting action in wood-based and laminated materials. Ideal for making curved and intricate cuts in plywood, compact laminate worktops and laminate flooring.
- Cross-Ground, V-Type Tooth Form delivers a fast, efficient cutting action with minimal tear-out.
- Narrow 5.6mm Blade Width ideal for curved and intricate work.
- Bi-Metal Steel Body for increased strength and durability Blade Body Tapered Back for clean cut and fine finish.
- Tapered Back for increased clearance and manoeuvrability on curved cuts.
- 50mm Cut Length for material thickness 1.5mm to 15mm.
- 18 TPI Fine Tooth Pitch for a controlled cutting action and clean finish.
- Universal T-Shank Bayonet Fitment.
Professional Jigsaw Blades
High quality blades to cut straight and curved cuts in natural and man-made timber and plastic. Seven blades available including cross ground, tapered or milled and set, depending on material and application.
Applications
Cutting out shapes in wood.
Notching.
Scribing of end panels.
Cutting plastic.
Cutting metals.
Cutting laminate flooring.
Features
Our range of jigsaw blades includes cross-ground, milled & alternate set, milled & wavy set. Differences are used to give the best cut for the material.
Narrow 5.6mm blade width for curve cutting & 8mm standard width blades.
Bi-Metal and Chrome-vanadium blades for increased strength and wear resistance.
Blade Cut Length is available in sizes 50mm, 55mm, 75mm
T-Shank Bayonet Fitting for universal fitment.
Available in 6 TPI (4mm) , 8 TPI (3mm) ,10 TPI (2.5mm) , 12 TPI (2mm) , 15 TPI (1.7mm) & 18 TPI (1.4mm)
Detail
- Our range of jigsaw blades includes cross-ground, milled & alternate set, milled & wavy set. Differences are used to give the best cut for the material
- Narrow 5.6mm blade width for curve cutting & 8mm standard width blades.
- Bi-Metal and Chrome-vanadium blades for increased strength and wear resistance.
- Blade Cut Length is available in sizes 50mm, 55mm, 75mm
- T-Shank Bayonet Fitting for universal fitment.
- Available in 6 TPI (4mm) , 8 TPI (3mm) ,10 TPI (2.5mm) , 12 TPI (2mm) , 15 TPI (1.7mm) & 18 TPI (1.4mm)
Related Products
Discover more about Trend Jointing Solutions
Jointing with a Router
Domino Bit Products
The Mortise & Tenon Jig
- Bayonet fitment
- T-Shank
- Blade thickness
- 1.1 mm
- Pitch
- 1.4mm (18 TPI)
- Kerf
- 1.27 mm
- Overall length
- 75 mm (3-inch)
- Cutting length
- 50mm (2-inch)
- Width
- 5.6mm (7/32-inch)
- Material thickness min.
- 1.5 mm (1/16-inch)
- Material thickness max.
- 15 mm (19/32-inch)
